TDK MCZ1210AH Common Mode Filters
TDK MCZ1210AH Common Mode Filters are designed for use in high-speed differential signal line applications. These compact multilayer common mode filters operate in a wide frequency range for differential mode transmission ensuring common mode impedance. TDK MCZ1210AH Common Mode Filters' common mode noise is suppressed with nearly no effect on the high-speed differential transmission line. Typical applications include electronic equipment with a high-speed interface, mobile phones, PCs, portable game machines, DVD players, TVs, and mobile audio.
Features
- Compact multilayer common mode filter
- EMC suppression is achieved through a widened frequency range
- Common mode noise is suppressed
- -40°C to 85°C operating temperature
- -40°C to 85°C storage temperature after the circuit board is mounted
Applications
- Electronic equipment with a high-speed interface:
- USB2.0
- Low-Voltage Differential Signaling (LVDS)
- Mobile High-Definition Link (MHL)
- Mobile phones
- PCs
- Portable game machines
- TVs
- DVD players
- DVCs
- Mobile audio

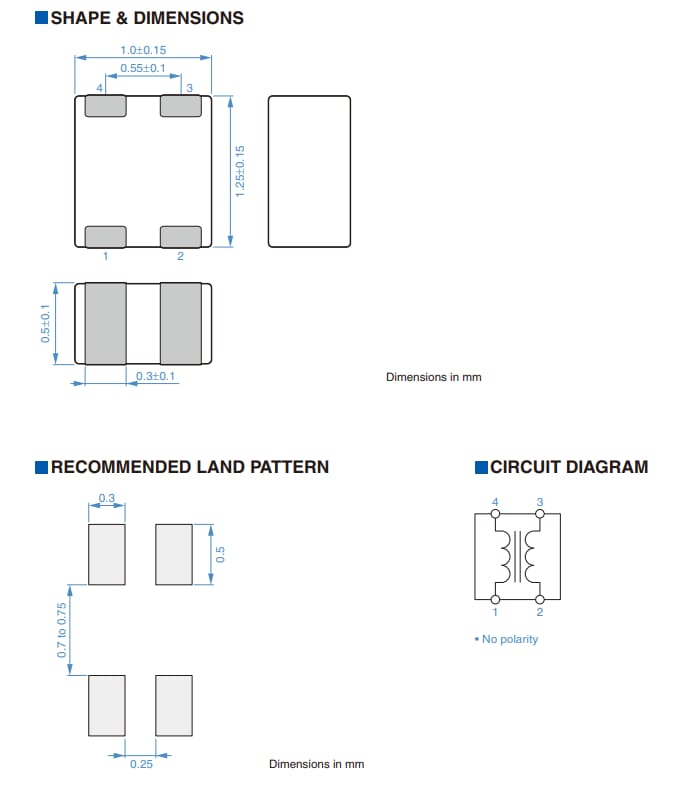

MCZ1210AH Dimensions

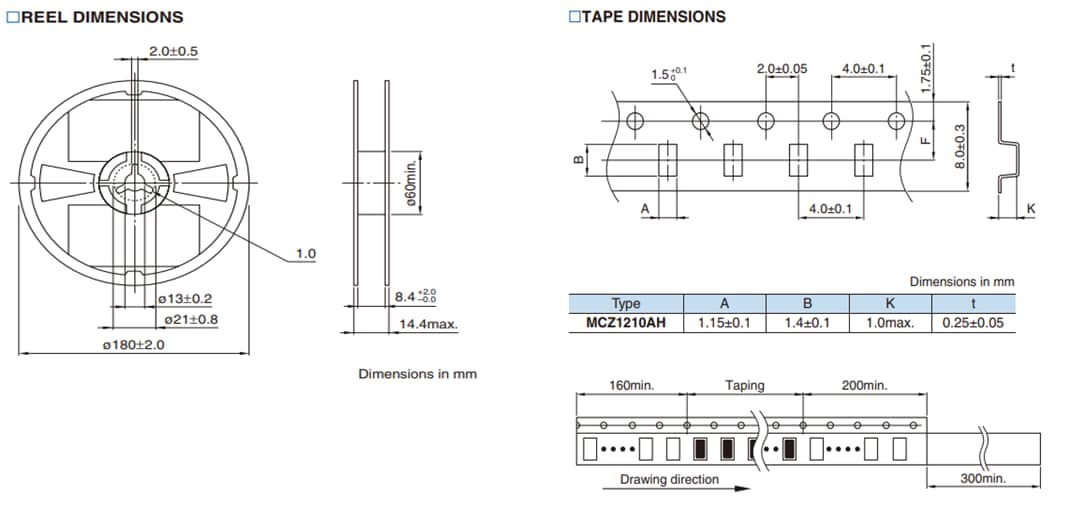

Tape & Reel Dimensions

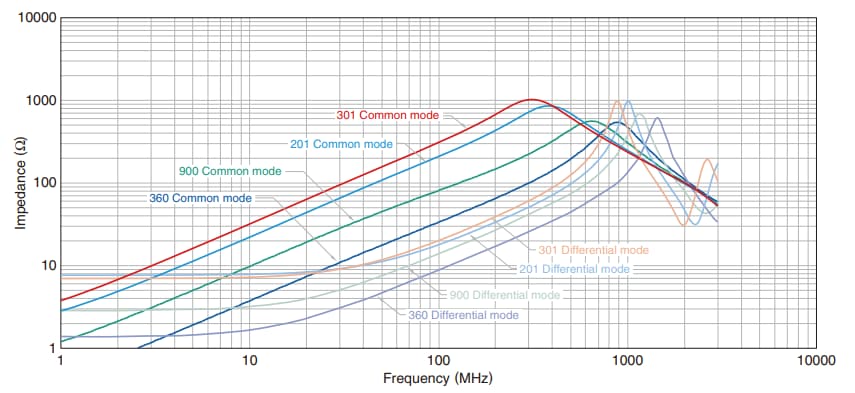

Impedance vs Frequency Characteristics
