MACOM MADT-011000 Power Detectors

MACOM MADT-011000 Power Detectors are single-ended, internally matched power detectors with wide input bandwidth and high dynamic range. These ESD-protected devices are available in a 3mm 16-lead QFN package or a fully passivated 100µm thick GaAs die. MACON MADT-011000 Power Detectors consume 70μA from a 4.5V supply, while matched detector and reference diodes provide temperature compensation in differential operation. These power detectors offer a 30dB dynamic range and are well suited for power control in microwave radios, test and measurement equipment, and radar applications.

Features

  • Single-ended and internally matched
  • -15dBm to 15dBm input power range
  • 30dB dynamic range
  • 4.5V, 70µA DC supply
  • ESD protected
  • Options
    • Lead-free 3mm 16-lead QFN package
    • Fully passivated 100µm thick GaAs die
  • RoHS compliant

Applications

  • Power control
    • Microwave radios
    • Test and measurement equipment
    • Radars

Videos

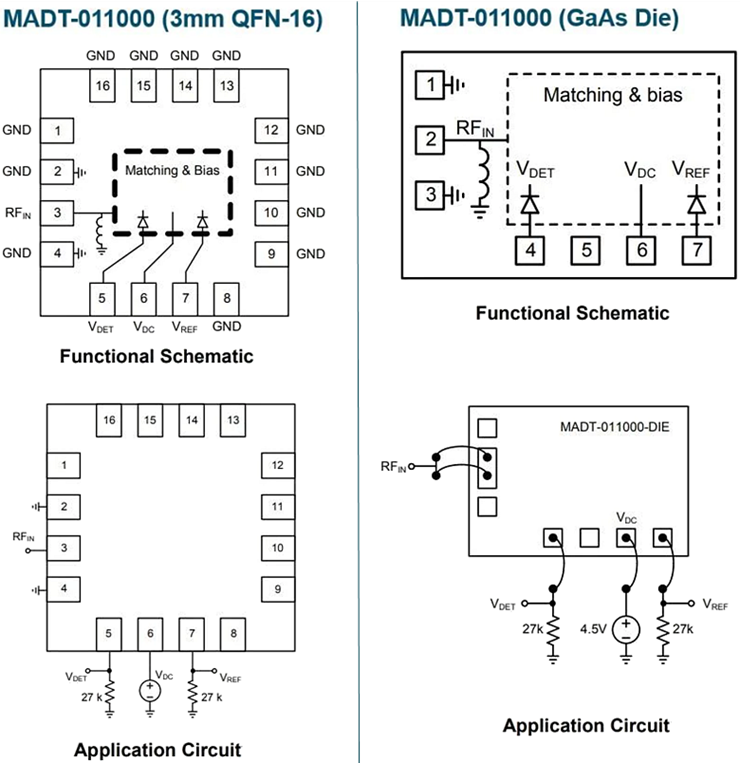

Functional Schematics & Application Circuits
